Crosby 1096562 Safey Latch, Large, (RL Hook)

Description

Crosby 1096562 Safey Latch, Large, (RL Hook)

Cross Reference #:

• S-4320

Applications:

• This latch kit will not fit the old style 319, 320 and 322 hooks.
• Designed to fit the new style 319N, 320N, 322N, 339N, 1327 and 1339 series hooks.

Specifications:

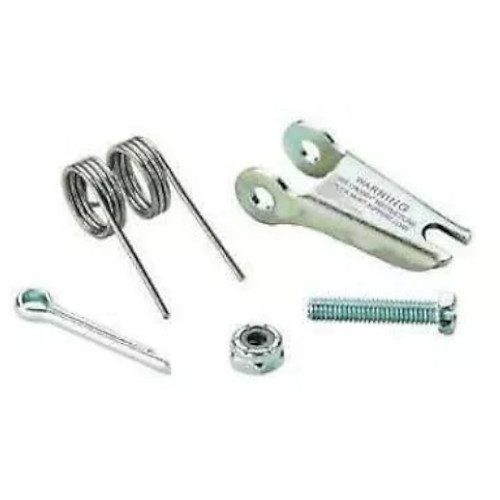

• Latch, Spring, Bolt, Nut, Cotter Pin Finish: Plain Item: Latch Kit Material: Steel Color: Silver Dimension A: 2-7/8″ Dimension B: 15/16″ Hook Opening: 2-7/8″ Dimension D: 1-3/64″
• Dimension C: 13/64
• Heavy duty stamped latch interlocks with the hook tip.
• High cycle, long life spring.
• Can be made into a “Positive Locking” Hook when proper cotter pin is utilized.

Features:

• High-Quality Steel ? Made from forged alloy steel for strength and durability.
• Heat-Treated ? Enhances toughness and resistance to wear.
• Load Rating ? Clearly marked for easy identification of working load limits (WLL).
• Latching Mechanism ? Secure safety latch to prevent accidental load release.
• Corrosion Resistance ? Available with galvanized or coated finishes for extended lifespan.
• Versatile Designs ? Includes eye hooks, swivel hooks, and clevis hooks for different applications.
• Certification & Compliance ? Meets ASME, OSHA, and other industry standards.
• Fatigue Rated ? Designed to withstand repeated lifting cycles.

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.
