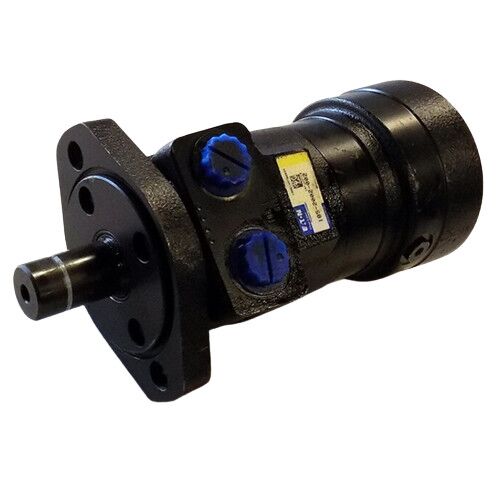

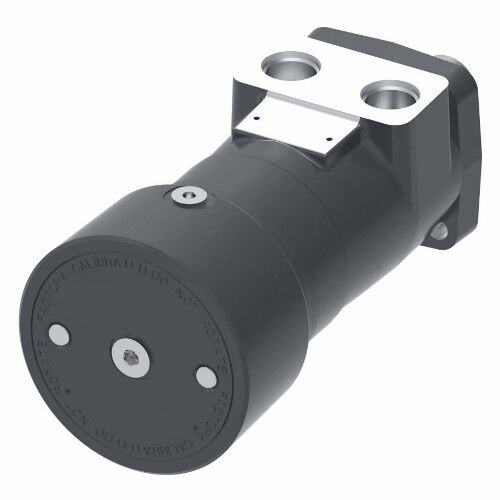

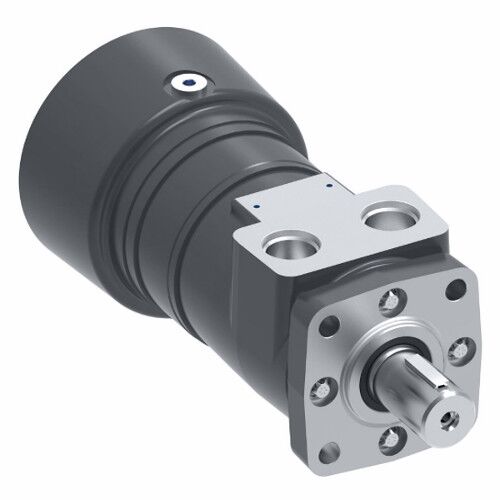

Char-Lynn 185-2002-002 Hydraulic Motor w/ Brake, T Series

Description

Char-Lynn 185-2002-002 Hydraulic Motor w/ Brake, T Series

Applications:

• Anywhere load holding is needed in a low speed high torque drive system
• Truck-mounted equipment
• Conveyors
• Marine cranes
• Fishing winches
• Mining equipment
• Agricultural equipment
• Railroad equipment
• Airport support vehicles

Cross Reference #:

• Eaton 185-2002-002
• ETN185-2002-002
• 1852002002
• WA-90802990
• Waltco W90802990
• 22801-017

Features:

• Integrated, compact, patented design
• Capability of combining four inventory items into a single assembly (motor, brake, counter-balance valve, brake release line)
• Rear-mounted integrated brake with 6:1 torque advantage
• Access port for manual brake release (for over-riding brake in the event of loss of release pressure)
• T Series
• Low Speed High Torque Geroler Element Spool Motor

Specifications:

• CATALOG NUMBER: 185-2002-002
• MODEL CODE: MTB049AA01AA00A0000000000AA00B
• PRODUCT LENGTH/DEPTH :8.81 in
• PRODUCT HEIGHT: 3.87 in
• PRODUCT WIDTH: 5.27 in
• PRODUCT WEIGHT: 12.2 lb
• TORQUE: 174 Nm
• SPECIAL FEATURES (HARDWARE): None
• INTERMITTENT PRESSURE: 190 bar
• SEAL OPTIONS: Standard
• GEROLER OPTIONS: Standard
• IDENTIFICATION: None
• DESIGN CODE: 2
• PORT TYPE: .875-14 UNF-2B SAE O-Ring Ports
• VALVE OPTIONS: None
• SPEED SENSOR: No
• RECOMMENDED SYSTEM WORKING TEMPERATURE: -34?C to 82?C
• VISCOSITY RECOMMENDATION: 70 SUS
• MOUNTING TYPE: 2 Bolt Std – 82.50 [3.248] Dia. X 3.05 [.120] Pilot, 13.59 [.535] Dia. Mounting Holes On 106.35 [4.187] Dia. B.C.
• PRODUCT MATERIAL: Ductile Iron
• FLOW RATE: 57 l/min
• MAXIMUM SPEED: 694 RPM
• PAINT: Primer Low Gloss Black
• SPECIAL ASSEMBLY INSTRUCTIONS: Reverse Rotation
• DISPLACEMENT: 80 cm?/rev
• TWO SPEED RATIO: None
• CASE FLOW OPTIONS: None
• OUTPUT SHAFT TYPE: Straight
• PRESSURE/FLOW OPTION: None
• SHAFT OPTIONS: None
• APPLICATION: Truck Mounted Equipment, Vehicle Recovery Winches, Fishing Winches
• LOW PRESSURE RELIEF: None
• BRAKE TYPE: Hydraulic
