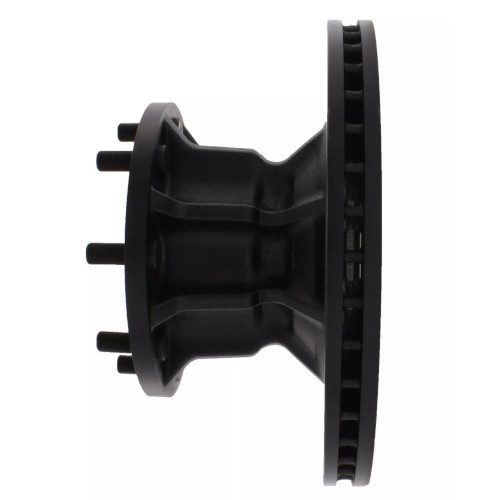

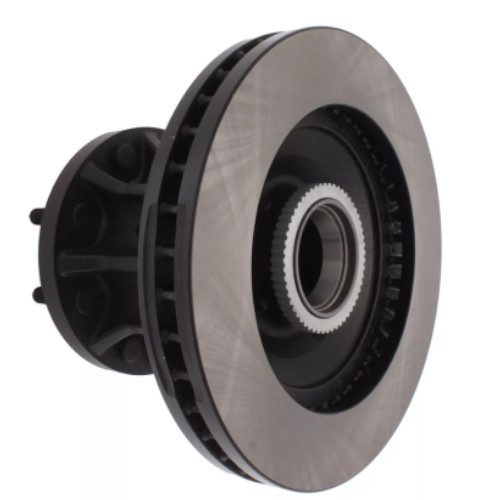

Centric 120.66034 Brake Drum (Genuine)

Description

Centric 120.66034 Brake Drum (Genuine)

Cross Reference #:

• Raybestos Brakes 56593
• Raybestos Brakes 56593FZN
• Raybestos Brakes 56593R
• BD125471
• E125-71-039
• 6493060
• 55032
• 55032G
• 107220
• 19202726
• 19152698
• 15691956
• 15992122
• 18060213
• 18061213
• 145134
• 86593
• 4886593
• AR8634
• E12329
• E12571039
• 120.66034
• 69-720294
• 69720294
• YH145134
• 27170
• 18A874A
• 1770983
• 177768
• 60048030

Applications:

• Chevrolet C3500 (1995-2000)
• GMC Savana 3500 (1996-2002)
• GMC G3500 (1996)
• GMC C3500 (1995-2000)
• Chevrolet G30 (1996)
• Chevrolet Express 3500 (1996-2002)

Specifications:

• Weight [cntrc] Kgs 22.270
• Inner Seal # [cntrc] 417.66008
• Misc Holes [cntrc] 0
• Outer Race # [cntrc] 416.66000
• Disc Mounting [cntrc] Hub & Rotor
• Outer Bearing # [cntrc] 415.66000
• Vane Style [cntrc] Straight
• Weight [cntrc] Lbs 49.000
• Inner Bearing # [cntrc] 410.91035
• Discard Thickness 37.210 MM
• Discard Thickness 1.465 IN
• Nominal Thickness 39.100 MM
• Nominal Thickness 1.539 IN
• Hat Finish Coated
• Stud Thread Diameter 14.000 MM
• Overall Height 208.200 MM
• Overall Height 8.197 IN
• ABS Tone Ring Included Yes
• Surface Type Smooth
• 54 317.400 MM
• Rotor Outside Diameter 12.496 in
• Solid Or Vented Type Rotor Vented
• Bolt Thread Pitch 1.500 MM
• Bearings Included No
• Center Hole Diameter 116.000 MM
• Center Hole Diameter 4.567 IN
• Mounting Bolt Hole Circle Diameter 165.100 MM
• Mounting Bolt Hole Circle Diameter 6.500 IN
• Stud/Lug Hole Quantity 8

Features:

• Centric brake pads are designed to provide consistent stopping power and reduced noise, enhancing overall driving safety.
• These rotors are crafted for superior heat dissipation and durability, improving braking performance and extending service life.
• The calipers offer reliable braking force and precise fit, contributing to smooth and effective braking action.
• Wheel cylinders are engineered to deliver strong braking performance and long-term reliability under various driving conditions.
• Master cylinders ensure efficient brake fluid transfer, crucial for maintaining a responsive and reliable braking system.
