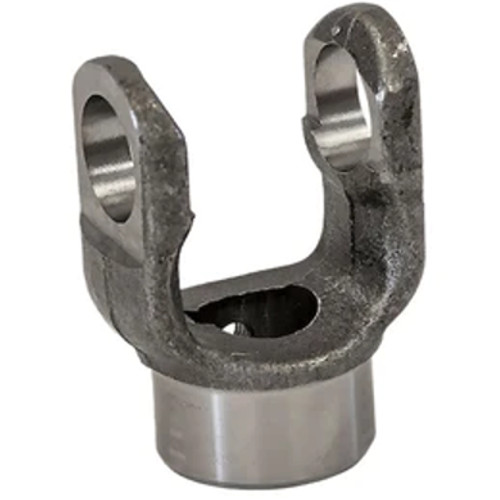

Buyers Products 7493 H7 Series End Yoke 1″ Round Bore W/ 1/4″ Keyway

Description

Buyers Products 7493 H7 Series End Yoke 1″ Round Bore W/ 1/4″ Keyway

Applications:

• Remote Mount Hydraulic Pumps
• Shaft Driven Air Compressors
• Shaft Driven Generators
• Shaft Driven Water Pumps

Cross Reference #:

• BY01-7493
• BUY7493
• Features:

Specifications:

• Bore Type: Round
• Finish: Plain
• Keyway At: 2
• Keyway Size: 0.250″
• Material: Forged Steel
• Set Screw At Location: 4
• Series: H7
• Bore Diameter/Width: 1.0″
• End of Hub To Centerline of Set Screw Hole: 0.625″
• Hub Diameter: 12.0″
• Center Line to End of Hub: 2.5″
• Joint: 15 Degrees
• Set Screw Size: 3/8-16
• Commonly Used For: Remote Mount Hydraulic Pumps, Shaft Driven Air Compressors, Shaft Driven Generators, Shaft Driven Water
• Pumps
