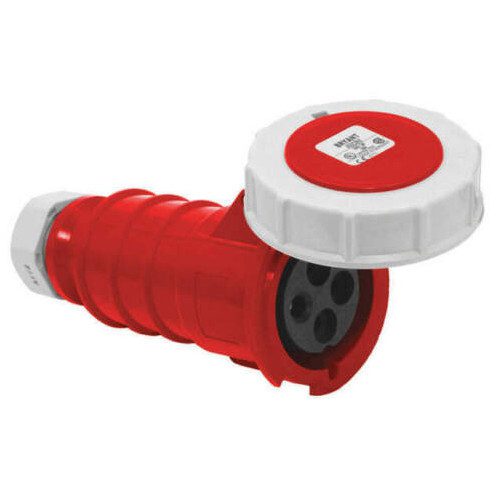

Bryant 430C7W Watertight Connector 3 Pole, 4 Wire Grounding

Description

Bryant 430C7W Watertight Connector 3 Pole, 4 Wire Grounding

Cross Reference #:

• BRY430C7W

Specifications:

• Application High Ampacity Connections
• Color Red
• Environmental Conditions Watertight
• Insulation Insulated Body
• Item Type Watertight
• Material Composite
• Material – Mounting Hardware Cord Mounted
• Number Of Poles 3-Pole
• OEM Brand Name Hubbell Bryant
• Series Watertight – IP67
• Temperature Rating Maximum Continuous: 75? C; Minimum Continuous: -40? C w/o impact, -25? with impact.
• Type Connector
• Amperage Rating 30 A
• Connectivity Pressure Terminal Screws
• Current / Amperage Rating 30 A
• Current Rating 30 A
• Voltage Rating 3 Phase 480 V
• Voltage Rating Description 3 Phase 480V
• Conductor Related
• Conductor Range #12 AWG to #8 AWG
• Number Of Conductors 4-Wire Grounding
• Number Of Wires 4-Wire

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.
