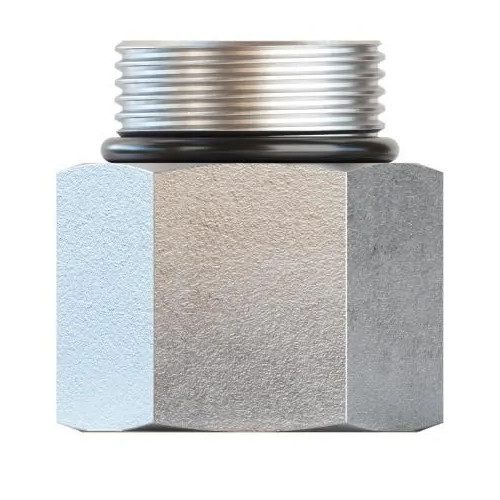

ZCS4269-32-32 Hydraulic Fitting, Straight Adapter 2″ Male ORB (2-1/2″ Threaded) x 2″ Female

Description

ZCS4269-32-32 Hydraulic Fitting, Straight Adapter 2″ Male ORB (2-1/2″ Threaded) x 2″ Female

Cross Reference #:

• ZCS42693232
• 6405-32-32
• 1108-32-32

Specifications:

• Adapter Type: Straight Adapter
• End 1 Style: Female Pipe Rigid
• End 1 Size: 2.0000 in – 2 in
• End 1 Thread: (NPTF) 2?11-1/2
• End 2 Style: Male O-Ring Boss
• End 2 Size: 2 in
• End 2 Thread: (SAE) 2-1/2?12
• Material: Steel
• Maximum Operating Pressure
• 1150 psi
• Description Keyword: 2 in Female Pipe Rigid x 2 in Male O-Ring Boss
• Overall Length: 2.24 in

Features:

• Hydraulic tube fitting and adapter part numbers are constructed from symbols that
• identify the series, size, material and type of product
• Steel construction
• Built to withstand heavy impulse and vibration in both vacuum and pressure systems
• Interchangeable and easy to install, requiring no special tools
