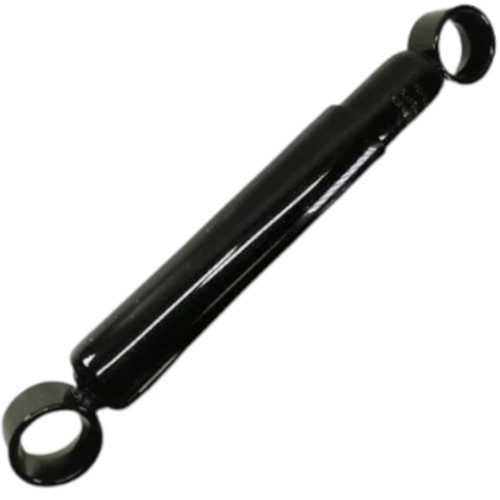

Western Star 37301-3412 Shock Absorber, Front

Description

Western Star 37301-3412 Shock Absorber, Front

Cross Reference #:

• M85053
• GBL85053
• MERITOR M85053
• MONROE 65124
• BULL DOG HD1215-0058
• FLEETRITE AMS650124
• GOLD 9180191
• KONI 90-1867
• SACHS 317 940
• WESTERN STAR 665682
• WESTERN STAR 37301-3401
• WESTERN STAR 37301-3404
• WESTERN STAR 37301-3405
• WESTERN STAR 37301-3409
• WESTERN STAR 37301-3412
• WESTERN STAR 37390-4401
• WESTERN STAR 37390-4403
• WESTERN STAR 37390-4402
• BULLDOG HD SHOCKS HD1215-0058
• 737013412
• WS37301-3412
• Gabriel 70707
• T70307-PA

Specifications:

• Body Diameter (in.) 2.38 in.
• Body Diameter (mm) 60.5 mm
• Bore (in.) 1.57 in.
• Bore (MM) 40 mm
• Brand Meritor
• Collapsed Length (in.) 15.51 in.
• Collapsed Length (mm) 394 mm
• Dust Shield Diameter (in.) 2.76 in.
• Dust Shield Diameter (mm) 70 mm
• Extended Length (in.) 24.49 in.
• Extended Length (mm) 622 mm
• Family Code 41FCST
• Hydraulic Stop No
• Pallet Quantity 198
• Stroke 228 mm
• Stroke Inch 8.97 in.
• Type Standard
• Weight 9.28

Features:

• Larger 1 5/8” bore supplies improved durability and greater tensile strength
• Bulged design provides increased fluid capacity and cooler operation in extreme conditions
• Forged solid steel eye rings with arc-welded mounts reduce risk of end mount failures
• Super-finished chromed piston rod for increased corrosion resistance and long-lasting service life
• 10-stage valving provides maximum comfort and control and self-cleaning functionality

Gabriel HD is building high-performance shocks and struts that cover more than 96% of North American vehicles. Gabriel continues to be one of our nation’s most trusted aftermarket and original equipment manufacturers for light- and heavy-duty vehicles and things you might not imagine, like industrial washing machines and car washes.
