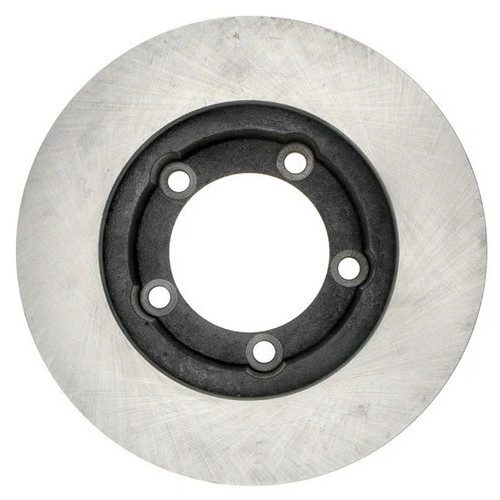

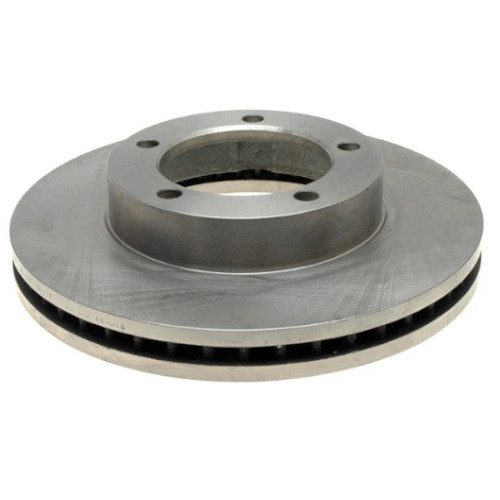

Wagner 52-125639 Brake Rotor (Replaces Raybestos 56496)

Description

Wagner 52-125639 Brake Rotor (Replaces Raybestos 56496)

Cross Reference #:

• General Motors 12547509
• General Motors 15024282
• General Motors 18028286
• Workhorse W8810506
• Brembo 09.8829.85
• Brembo 27218
• Brembo A-6012
• Delphi RB615
• Mighty Distributing System 55029
• Universal 101461
• Wagner Brake BD125478
• Wagner Brake BD125639
• ACDelco 177-762
• Bendix 145027
• Autospecialty AR8631
• Autospecialty AR8631E
• Brake Headquarters BR55742
• California Drum & Rotor 125478
• California Drum & Rotor 125639
• Eurorotor 55762
• Quality Brand 55029
• Quality Brand Q4071
• VIPAR – Vehicle Indusrty Parts & Manufacturing X51031
• BrakeBest 56496
• BrakeBest 56496R
• BrakeBest 56496RGS
• BrakeBest BD125639
• Centric Parts 120.66031
• Centric Parts 121.66031
• Centric Parts 125.66031
• Centric Parts 126.66031SL
• Centric Parts 126.66031SR
• Centric Parts 127.66031CL
• Centric Parts 127.66031CR
• Centric Parts 127.66031L
• Centric Parts 127.66031R
• Centric Parts 320.66031
• Centric Parts 320.66031F
• WABCO – Archived PS125639
• AutoZone 55029
• Advance Auto Parts 145027
• Advance Auto Parts YH145027
• American Remanufactured 789-44031
• American Remanufactured 89-44031
• Autoxtra 125639
• Autoxtra 8056496
• Autoxtra AX55029
• Casting Numbers 210647-C
• Casting Numbers 211533-DP
• Casting Numbers 325421
• Dura Corp BR55029
• EIS Brakes D17744
• Standard Rotors and Drums 55029
• GREN 671302
• Qualis 55029
• Winhere 442620
• Winhere YH2620
• Newtek Automotive USA 55029
• Pep Boys 55029G
• Formula Blue Hydraulic Brake Parts E12571036
• Promax 14-55029
• UAP 55029
• Wagner Brake BD125639E
• Omnicraft QBRR535
• DuraGo BR55029

Applications:

• Workhorse Custom Chassis P42 (1999-2005)
• Workhorse Custom Chassis P32 (1999-2007)
• GMC C3500HD (1994-2002)
• Chevrolet C3500HD (1994-2002)
• Workhorse W42 (2004-2005)
• Workhorse P42 (1999-2005)
• Workhorse P32 (1999-2005)
• Workhorse P30 (2000)
• GMC P3500 (1997-1999)
• Chevrolet P30 (1997-1999)

Specifications:

• ABS Tone Ring Included No
• Center Hole Diameter 5.005 IN
• Center Hole Diameter 127.15 MM
• 9565 Conventional
• Discard Thickness 1.366 IN
• Discard Thickness 34.7 MM
• Harmonize Code 8708.30.5030
• Mounting Bolt Hole Circle Diameter 6.339 IN
• Mounting Bolt Hole Circle Diameter 161 MM
• Mounting Bolt Hole Diameter 6.339 IN
• Mounting Bolt Hole Diameter 161 MM
• Mounting Bolt Hole Quantity 5
• Nominal Thickness 1.43 IN
• Nominal Thickness 36.3 MM
• Outside Diameter 13.85 IN
• Outside Diameter 351.8 MM
• Overall Height 2.935 IN
• Overall Height 74.55 MM
• Salability Restrictions No
• Solid Or Vented Type Rotor Vented
• Stud/Lug Hole Quantity 5

Features:

• Legacy & Innovation: Raybestos has been a trusted brand in braking solutions since 1902.
• Comprehensive Brake Product Range: Offers friction materials, rotors, drums, calipers, hub assemblies, hydraulics, and hardware.
• Focus on Racing & Performance: Provides specialized products for high-performance and racing vehicles.
• Commitment to Quality: Known for reliable, high-quality products across various brake system components.

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Raybestos For over a century, Raybestos® has been a trusted name in automotive brake parts, known for innovation and reliability. Our journey began in 1902, and we’ve continued to evolve, earning a reputation you can count on. These products are crafted to match or exceed OE fit, form, and function, ensuring your safety on the road. Safety and reliability are our top priorities. Each Raybestos® product undergoes extensive testing to meet our high standards. From design to manufacturing to packaging, we’re all about the details that set us apart. When it comes to brake parts, Raybestos® stands out for its history, innovation, testing, and global presence. We’re here to ensure your driving experience is safe and reliable
