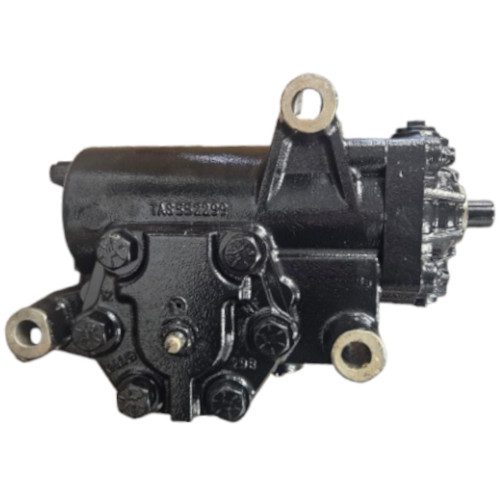

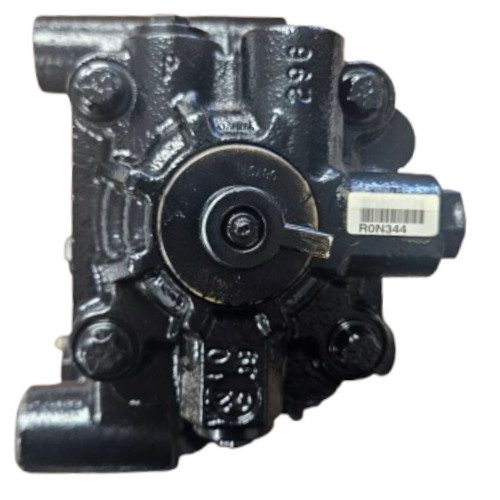

TRW TAS55004R Power Steering Gear, Reman (NO CORE CHARGE)(Genuine)

Description

TRW TAS55004R Power Steering Gear, Reman (NO CORE CHARGE)(Genuine)

Cross Reference #:

• TAS55004R
• TAS55-004R
• TAS55-004
• RGT55-004
• RGT55004
• TRW55004R
• TRW55004
• TRWRGT55004R
• RGT55004RMAN
• International 1661401C91
• Navistar 1661401C91
• NAV1661401C91
• INT1661401C91
• 702843AT
• ABP R46 TAS55004

Applications:

• Freightliner
• Peterbilt
• Kenworth
• Mack
• Volvo
• Navistar International
• Westar

Specifications:

• Brand: TRW
• Condition: Reman, New Original Packaging
• Front Axle Weight: 12,000 lbs (5,500 kg)
• Pressure Rating: 2,175 psi (150 bar)
• Output Torque at Rated Pressure 90% Efficiency: 35,300 in/lbs (3,988 N-m)
• Gear Travel: 95°
• Gear Ratio: 20.4:1, 18.4:1
• Output Shaft Diameter: 2.00 in (50.8 mm)
• Output Shaft Serrations: 1.937 x 52 Straight
• Input Shaft Serrations: .812 x 36 Straight
• Maximum Operating Temperature: 250°F (121°C)
• Minimum Pump Flow for 1.5 hwt/sec: 2.7 gpm (10.2 lpm)
• Recommended Pump Flow Control Range: 3.6-6.0 gpm (13.6-18.9 lpm)
• Approximate Dry Weight: 73 lbs (33 kg)
• Finish: Painted
• TAS Family

Features:

• Engineered for superior torque output & performance hauls.
• For both on & off-highway vehicles with medium and heavy front axle loads.
• The TAS gear operates with fewer moving parts and maintains responsive handling and positive steering control
• Designed for durability, minimizing downtime and maintenance needs
• Seamless integration with OEM systems ensures quick, hassle-free installation
• High-quality materials withstand harsh driving conditions, ensuring reliability
• Improved rotary valve design.
• Automatic poppets
• Optional automatic bleed systems

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

TRW Parts Inc., originally known as Thompson Ramo Wooldridge Inc., was an American company primarily involved in aerospace, automotive, and defense industries. Founded in 1958, TRW quickly became a significant player in the development of aerospace technology, contributing to various projects, including NASA’s Apollo missions. Over time, TRW diversified into automotive safety systems, producing advanced braking, steering, and suspension components. Its innovations in airbag and seatbelt technology helped set safety standards worldwide. In 2015, TRW was acquired by German automotive supplier ZF Friedrichshafen, integrating its expertise into ZF’s global operations, particularly in automotive safety and autonomous driving technologies.
