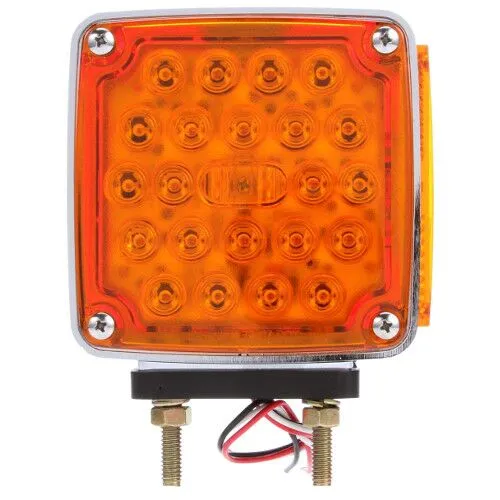

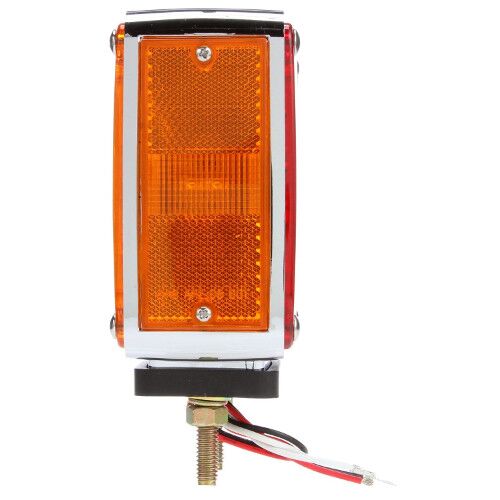

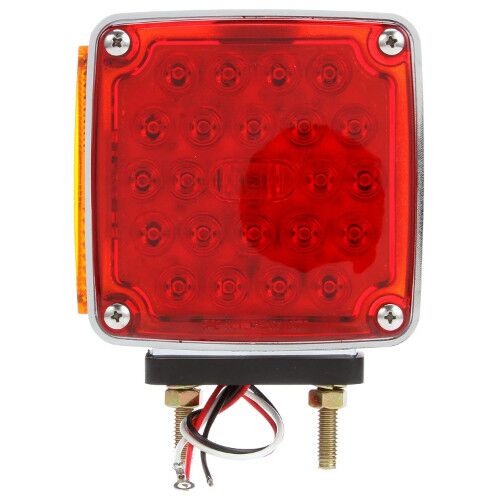

Truck-Lite 2759 Pedestal Lamp, Signal-Stat LED LH, Red/Yellow Square, 24 Diode

Description

Truck-Lite 2759 Pedestal Lamp, Signal-Stat LED LH, Red/Yellow Square, 24 Diode

Cross Reference #:

• SS2759-S
• TRU2759
• TL2759
• TL-2759
• Napa 2759
• AUTOMANN 571.LD25AR52L
• 571LD25AR52L
• BALDWIN AF942
• AF595
• CENTRIC PARTS 12766035L
• DAYTON PARTS 339317
• GATES 18772
• GROTE G5530
• Redneck Trailer Supplies 18788
• Timken Co., The 6064

Features:

• Unique LED array generates a full pattern output without excessive power draw
• Solid-state, bulb-free design that’s impervious to shock and vibration
• Epoxy-encapsulated electronics shields lamp against dirt, moisture, and corrosive chemicals
• Complies with SAE J974 for agricultural warning devices
• Heavy duty zinc housing that’s chrome plated for improved corrosion resistance

Specifications:

• Voltage 12
• Bulb Technology LED

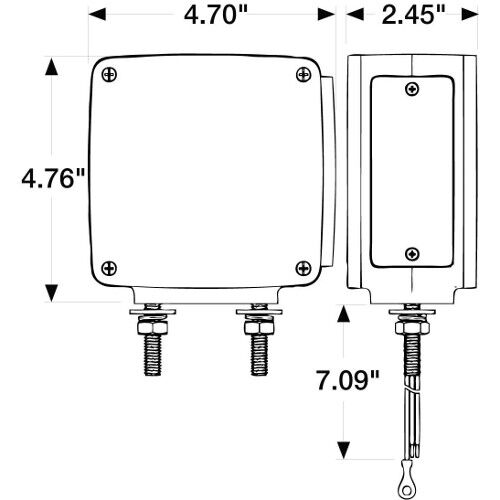

• Common Size 4.5×4.5 IN
• Current Minor 0.04
• Housing Color Chrome
• Housing Material Zinc
• Kit No
• Lamp Connection Hardwired
• Lens Color Red, Yellow
• Lens Height 4.7 IN
• Lens Material Polycarbonate
• Lens Shape Square
• Lens Width 4.7 IN
• Mount Type 2 Stud Mount
• Mounting Orientation Vertical
• Number Of Diodes/bulbs 24
• Plug Side One Hardwired
• Plug Side Two Stripped End, Ring Terminal
• Position Left Hand Side
• Sealed/bulb Replaceable Sealed
• Series Signal-Stat
• Side Marker Yes
• Standards Met I6
• Wire Quantity 3

Description:

• Ideal for show trucks, highway mowing, municipal and farm equipment|Unique LED array displays full pattern output|Side marker reflex reflector|LEDs have no filament, therefore are extremely resistant to shock and vibration|LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements|Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture|Double-stud mount

Truck-Lite Over sixty years of innovation has established Truck-Lite as a globally recognized brand, trusted by users from the largest fleets to smaller owner-operators. Truck-Lite began with an ingenious idea that sparked a revolution in truck and trailer safety lighting.
