Truck-Lite 10744R 10 Series Light Marker Bar, 3 Light, Identification Bar

Description

Truck-Lite 10744R 10 Series Light Marker Bar, 3 Light, Identification Bar

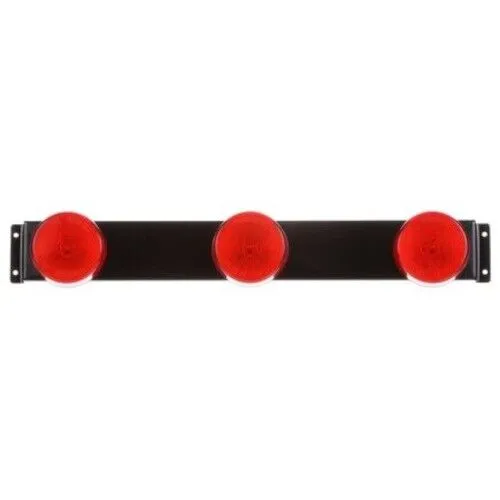

Truck-Lite 10744R Light Marker Bar, 10 Series Incandescent, Identification Bar, Round, Red, 3 Lights, 6″ Centers, Black, 12V, Kit

Truck-Lite’s 10 Series identification bar provides durable and practical identification lighting solutions for most truck and trailer applications. Each bar includes three high-quality incandescent lamps.

Cross Reference #:

• 49042
• UniBond LB2500R
• GROTE 49142
• TL10744R
• 1295
• TRU10744R
• Primatronics PT1050R

Specifications:

• Current Major: 0.33
• Voltage: 12
• Lighting Technology: Incandescent
• Number of Diodes/Bulbs: 1
• Number of Lights: 3
• Number of Wires: 2
• Wire Gauge: 14
• Lamp Connection: PL-10
• Plug Side One: PL-10
• Plug Side Two: Stripped End|Ring Terminal
• KIT (Y/N): Yes
• Lens Shape: Round
• Lens Color: Red
• Mount/Trim Color: Black
• Mount/Trim Material: Steel
• Housing Material: Polycarbonate
• Lens Material: Polycarbonate
• Compliance Family: FMVSS 108|CMVSS 108|DOT|SAE
• Standards Met: P2
• Mount Type: 4 Screw Bracket Mount
• Product Type: Identification Bar
• Common Size: 2.5″
• Mounting Connector Diameter: 0.14 inch
• Center Distance: 6 inch
• Lens Width: 2 inch
• Lens Height: 2 inch
• Total Height: 1.45 inch
• Total Width: 16.00 inch
• Total Depth: 2.00 inch
• Weight: 0.93 pound

KIT INCLUDES:

• 10202R Lamp
• 00798 ID Bar
• 93906 Wiring Harness
