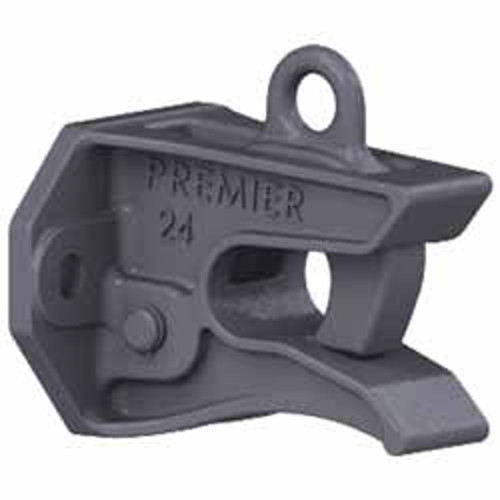

Premier 24 Drop Down Coupling for Light Dut Pulling

Description

Premier 24 Drop Down Coupling for Light Dut Pulling

Applications:

• P2
• Premier No2

Cross Reference #:

• 10001122
• PR24
• PR10001122

Specifications:

• Maximum Gross Trailer Weight: 12,000 lbs. (5,443 kg)
• Maximum Tongue Weight: not rated
• Ultimate Latch Capacity: not rated
• Maximum Eye X-Section: 1 in. (25 mm)
• Minimum Eye Opening: 2 in. (51 mm)
• Unit Weight: 9.2 lbs. (4.2 kg)
• High Quality Drop-Down Coupling
• Maximum Eye X-Section- 1 Inch
• Minimum Eye Opening- 2 Inch
• Maximum Gross Trailer Weight 12000 Lbs
• Maximum Tongue Weight- Not Rated
• Provides Light Duty Pulling Capacity With Very Simple Operation
• Eyelet Attached To The Top Of The Hook Makes Uncoupling Quick And Easy And Can Be Used For Remote Operation (I.E. Rope Or Cable Release)
• Not Recommended For Over-The-Road
• Use The 24 Is Ideal For Many Farm Factory And Light Industrial Applications
• Ultimate Latch Capacity- Not Rated
• Do Not Weld On Any Coupling Assembly
• Always Use Grade-8 Fasteners Properly Torqued
• Do Not Apply Lubricants To The Coupling Hook
• Clean And Inspect Coupling For Damage And Excessive Wear Prior To Each And Every Use
• Lubricate All Coupling Components At A Minimum Of 90 Day Intervals
• Do Not Bind-Up Jackknife Any Application As Stresses Can Cause Damage To Products Or Components Resulting In Failure And Detachment Of The Trailer While In Use
