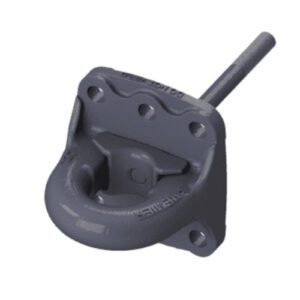

Premier 123-12 Drawbar Eye Assembly w/ 12″ Push Rod (10000721)

Description

Premier 123-12 Drawbar Eye Assembly w/ 12″ Push Rod (10000721)

Features & Benefits

• Exclusive Premalloy material becomes stronger with continued normal use for longer service life
• Induction-hardened for increased wear resistance beyond the surface layer
• Built with precision using computer-aided design and analysis software
• Physical destructive testing ensures optimal performance even at maximum load
• Meets or exceeds SAE J847 and J849 specifications and other industry guidelines

Cross Reference #:

• PREMIER MANUFACTURING 10000721

Specifications:

• Maximum Gross Trailer Weight 100,000 lbs. (45,359 kg)
• Maximum Tongue Weight 15,000 lbs. (6,803 kg)
• Inside Diameter 2 3/8 in. (60 mm)
• Unit Weight 15.6 lbs. (7.1 kg)

Premier Manufacturing Premier Manufacturing Company has been in business since 1924, designing, manufacturing and distributing the highest quality and safest tractor trailer components for the trucking industry. Our product line includes couplings/pintle hitches, drawbar eyes/lunette eyes, hinge assemblies, front end assemblies, dolly jacks and accessories.
