4718Q Brake Shoe Kit, 16.5″ x 8″, 23k, Double Web w/ Hardware, Reman

Original price was: $85.00.Current price is: $69.95.

8 in stock

SKU: 00-NB225kit-4718q Categories: , Tags: , , ,
Sale!

Description

4718Q Brake Shoe Kit, 16.5″ x 8″, 23k, Double Web w/ Hardware, Reman

Description:

  • NB225-FF extra HD brake linings are a heavyweight workhorse for long-haul demands. Assure quiet, dependable stopping power and outstanding block life. Specially formulated with highly enriched aramid fibers, along with the finest materials available. Protect cargo and driver. Help lower operating costs. Perfect for buses, trucks and trailers, where reserve braking capabilities and fast stops are essential.
  • NB225-FF passes the inertia dynamometer requirement of the FMVSS 121 brake standard at 23,000 lb. GAWR when using an AL factor of 165 (type 30 air chamber and a 5.5? slack adjuster) or greater.
  • NB225-FF extra HD brake linings are the answer to all the new ?hyped? technology blocks. This aramid fiber, resin based formula has a proven track record for delivering safe stopping, extended life, and prolonged drum wear in all applications.

Specifications:

  • Brake Shoe Size: 16.5″ x 8″
  • Roller: Open
  • Anchor: Open 1″ Opening
  • Roller to Anchor Measurement (Width): 12 3/4″
  • Application: Drive or Trailer 1-010, Drive or Trailer 1-1341
  • Brake: 16.5″ x 7″ Meritor S-Cam
  • AL Factor: 165
  • Axle Load: 23,000 lbs.
  • Rolling Radius: 20.7″
  • Drum Weight: 120 lbs.

Core Interchange:

  • Meritor Q Plus 4718Q

Brake/Liner Interchange Comparisons:

  • ABEX EX685
  • ABEX SDA6098
  • AUTOMANN AMF3085 RED
  • BENDIX ES600
  • BENDIX ES690
  • BENDIX ES440
  • BENDIX ES1100
  • BENDIX ES1160
  • BENDIX ES8000
  • BRAKE PRO CM21A
  • BRAKE PRO CM22A1
  • CARLISLE MB23
  • FLEETPRIDE OTR ORANGE
  • FLEETPRIDE OTR (NEW) DARK GREEN
  • HEAVY HAUL PRO 23HHP
  • FRAS-LE 557
  • GORILLA GB23HD
  • GORILLA SBP23
  • HALDEX/MIDLAND GH2030
  • HALDEX/MIDLAND GG2020
  • MARATHON FS23
  • MARATHONS23
  • MARATHON FLOE
  • MARATHON DL
  • MERITOR MA310
  • MERITOR K312
  • ROAD LEVELER PR23
  • ROAD LEVELER SS23
  • STEMCO VISTA HP
  • TEXTAR T2300

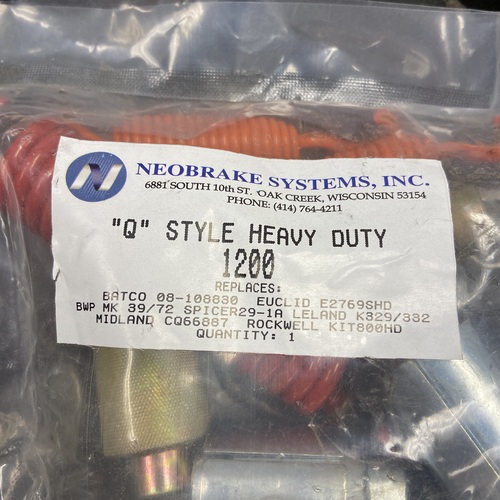

Hardware Replaces:

  • Batco 08-108830
  • Euclid E2769SHD
  • BWP MK39
  • BWP MK72
  • Spicer 29-1A
  • Leland K329
  • Leland 332
  • Midland CQ66887
  • Rockwell KIT 800HD
  • Sirco QK-1HD

Neobrake is a world-class formulator and remanufacturer of supreme heavy-duty, asbestos-free brakes, featuring exclusive NeoKinetic Friction Technology. Plenty has changed since then but safety remains our number one priority.? Which is why you won?t find cheap filler ingredients in our friction material or wheel-end components.

Additional information

Weight39 lbs
Dimensions12 × 18 × 11 in
