16″ x 8″ 4718Q Brake Shoe Kit, 23k/26k Double Web w/ Hardware, NeoBrake, Reman

Original price was: $83.00.Current price is: $69.95.

Out of stock

SKU: 00-NB1088 4718 Q Kit Categories: , Tags: ,
Sale!
16" x 8" 4718Q Brake Shoe Kit, 23k/26k Double Web w/ Hardware, NeoBrake, Reman
16" x 8" 4718Q Brake Shoe Kit, 23k/26k Double Web w/ Hardware, NeoBrake, Reman - Image 2
16" x 8" 4718Q Brake Shoe Kit, 23k/26k Double Web w/ Hardware, NeoBrake, Reman - Image 3
16" x 8" 4718Q Brake Shoe Kit, 23k/26k Double Web w/ Hardware, NeoBrake, Reman - Image 4

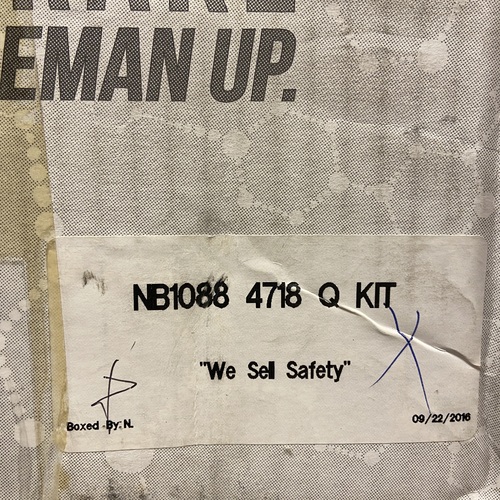

NeoBrake NB1088-4718-Q Brake Shoe Kit

Description

16″ x 8″ 4718Q Brake Shoe Kit, 23k/26k Double Web w/ Hardware, NeoBrake, Reman

Description:

The NB1088 cohesive friction brake block is the ultimate brake lining ? the only lining, in fact, you need regardless of your application. From OTR to Transit, the NB1088 lining delivers the longest life.

Formulated with special chemicals that?bleed out of?the lining?during braking, the?NB1088 lining?develops a?thin film on itself and the drum wall to create?non-abrasive or cohesive?friction. As a result, there?s?less heat, no damage to the drum?s?surface, and brake noise is reduced.

Key Advantages

  • Offers twice the life of abrasive linings?? Guaranteed as part of?Triple Double Guarantee?
  • Doubles?drum?life ? Guaranteed as part of?Triple Double Guarantee
  • Eliminates drum hot spotting and thermal cracking
  • Reduces uneven tire wear
  • Increases?wheel-end component?life
  • Extends maintenance and replacement intervals

NB1088-FF brake blocks pass the inertia dynamometer requirement of the FMVSS 121 brake standard at 23,000 lb. GAWR when using an AL factor of 165 (type 30 air chamber and 5.5? slack adjuster) or greater for OTR applications.

For our Transit block, the NB1088-FF lining passes the inertia dynamometer requirement of the FMVSS 121 brake standard at 26,000 lb. GAWR when using a type 30 air chamber and 7.0? slack adjuster.

Ultimate Formulation

  • Superior, asbestos-free matrix
  • Absence of conventional abrasives
  • Special ingredients to promote controlled transfer film
  • Film thickness 1 to 1.5 micron
  • Friction developed due to cohesive forces at molecular level
  • Special ingredients to control & condition film inter action
  • Heat sink particles to lower the rubbing surface temperature
  • Meets or exceeds?FMVSS 121

Specifications:

  • OTR
    • Brake Shoe Size: 16.5″ x 8″ Meritor S-Cam
    • AL Factor ? 30 x 5.5
    • Axle Load ? 23,000 lbs.
    • Rolling Radius ? 20.5?
    • CoF?? FF

  • TRANSIT

    • Brake Shoe Size ? 16.5? x 18?
    • AL Factor ? 30 x 7.0
    • Axle Load?? 26,000 lbs.
    • Rolling Radius?? 20.3? Transit
    • CoF?? FF

Core Interchange:

  • Meritor Q PLUS 4718

Brake/Liner Interchange Comparison:

  • Alliance ED6028
  • Alliance EH6040
  • Abex MC 685
  • Abex MC 697
  • Abex MX 697
  • Abex SMC 685
  • Abex SMC 6069
  • Automann AMF3100
  • Automann WHITE
  • Bendix ES1050
  • Bendix ?ES1100/600
  • Bendix ES8000
  • Brakepro CM29
  • Brakepro CMB42
  • Brakepro CMT22A1
  • Brakepro CCM2425
  • Brakepro CMT22A1
  • Brakepro CMM46
  • Carlisle MBC62
  • Carlisle MB60
  • Carlisle WT56
  • Fleetpride RED, SEVERE SERVICE 23SS
  • Fleetpride RED, SEVERE SERVICE 26SS
  • Fleetpride OTR SILVER
  • Fleetpride OTR GOLD
  • Fras-le 587
  • Fras-le 560
  • Fras-le 555
  • Fras-le 560
  • Fras-le 557
  • Gorilla GB23TFT
  • Haldex GC COMBO (2020/2035)
  • Haldex GP2030
  • Haldex GZ2035
  • Haldex GM2040
  • Haldex TRAN MAX?
  • Heavy Duty America MH 23
  • Heavy Duty America MH 20F
  • Marathon HS23
  • Marathon FLOE
  • Marathon MBS
  • Marathon MBC
  • Marathon KVT
  • Marathon TS
  • Marathon MBST
  • Marathon HST
  • Meritor R401
  • Meritor XK312
  • Meritor R403
  • Road Leveler
  • Stemco ULTRA PEAK BRT
  • Stemco ULTRA PEAK HH
  • Stemco ULTRA PEAK FT
  • Stemco VISTA HP1
  • Textar NABK132
  • Textar NABK COMBO 171
  • Textar NABK142
  • Textar TO143

Hardware Replaces:

  • BATCO 08-108830/34
  • EUCLID E2769SHD
  • EUCLID E4515QHD
  • BWP MK39/72
  • SPICER HK29XLS
  • LELAND K329/332
  • MIDLAND CQ66867
  • MERITOR KIT 8000HD
  • SIRCO QK-1HD

Neobrake is a world-class formulator and remanufacturer of supreme heavy-duty, asbestos-free brakes, featuring exclusive NeoKinetic Friction Technology. Plenty has changed since then but safety remains our number one priority.? Which is why you won?t find cheap filler ingredients in our friction material or wheel-end components.

Additional information

Weight 42 lbs
Dimensions 17 × 11 × 8 in
