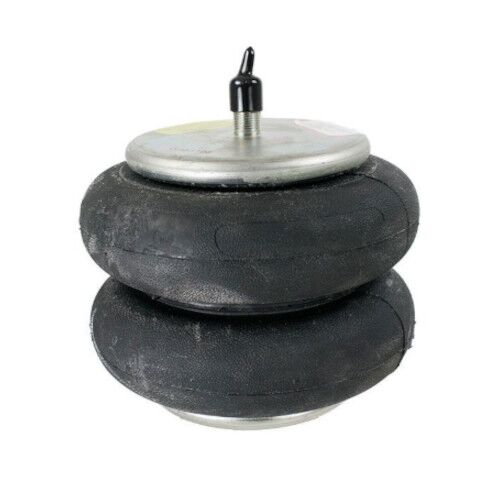

Firestone W01-358-6897 Air Spring Double Convoluted

Description

Firestone W01-358-6897 Air Spring Double Convoluted

Cross Reference #:

• TORQUE PARTS TR6897
• AS6897
• 2B-9229
• FIRESTONE 20F
• GOODYEAR 2B9-229
• RIDEWELL 1003586897C
• 2B9228
• GOODYEAR 2B9229
• TRIANGLE 4505
• WATSON & CHALIN AS0058
• WATSON & CHALIN AS0058S
• CONTITECH FD20019505
• BRAKE & WHEEL M3528
• 161300
• 556238225
• 556238325
• 578923202
• 6325
• FIW013586897
• W013586897
• HD VALUE HDV6897
• CONTITECH AS6897
• HD VALUE HDV6897
• AIR SPRINGS W11-3026
• CONTITECH AS6897
• NAVISTAR FLT2B9229
• TRIANGLE SUSPENSION SYSTEMS CO. AS-4505
• WORLD AMERICAN WA01-6897C
• MERITOR FS6897
• MAF6897
• STEMCO 2B9-229
• 2B9-206
• STEMCO 2B9-216
• STEMCO 2B9-225
• FIRESTONE 20
• BELLOWS 578-92-3-202
• GOODYEAR PART 2B9-229
• PISTON 8084
• PLATE 3102
• TRIANGLE BELLOWS 6325
• TRIANGLE PART 4505

Specifications:

• Compressed Height: 3.12 inches
• Top Plate Number: 3102
• Top Plate Width: 6.31 inches
• Piston Number: 8084
• Piston Width: 6.31 inches
• Loading Capacity at 20 psig: 524 lbsf
• Loading Capacity at 60 psig: 1,572 lbsf
• Loading Capacity at 90 psig: 2,358 lbsf
• Natural Frequency: Hz
• Maximum Diameter: 9.9 inches
