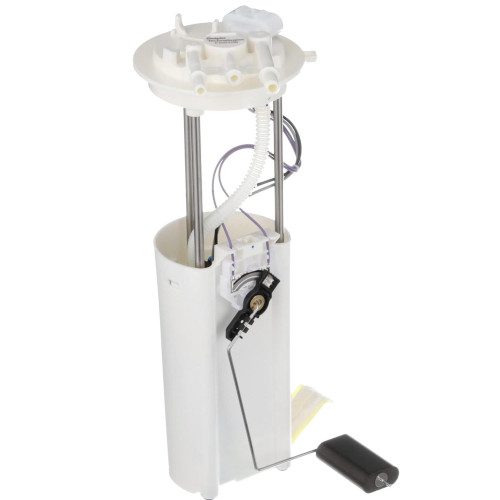

Delphi FG0109 Fuel Pump Module Assembly (Genuine)

Description

Delphi FG0109 Fuel Pump Module Assembly (Genuine)

Cross Reference #:

• DELFG0109
• General Motors 19177236
• General Motors 25317747
• 9535062
• ACDelco MU160
• ACDelco MU175
• ACDelco MU1750
• EVO Driveline AFS0484S
• EVO Driveline RE0484S
• Carter P74927M
• Airtex E3996M
• Spectra Premium SP6175M
• Master Parts Division E3996M
• Bosch 67364
• DENSO Auto Parts 953-5062
• AutoZone EFG0109
• General Motors 19331245
• General Motors 19369890

Applications:

• GMC Savana 3500 (1998-2000)
• Chevrolet Express 3500 (1998-2000)

Specifications:

• Vapor Pressure Sensor No
• System Pressure 62 psi
• Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
• Item Grade Standard Replacement
• Fuel Level Sender Assembly Included Yes
• Outlet Outside Diameter 0.375 IN
• Voltage 13.0 2H
• Fuel Type Gas
• Regulator Included No
• Maximum Pressure 109.0 PS
• Terminal Type Blade
• Gasket Or Seal Included Yes
• Terminal Quantity 4
• Lock Ring Included No
• Terminal Gender Male
• Strainer Included Yes
• Inlet Type Strainer
• Outlet Type Quick Connect
• Outlet Quantity 2
• In Tank or External In Tank
• Resistance Ohms Empty 40.0 82
• Resistance Ohms Full 250.0 82
• Internal Or External Strainer Internal
• Pump Type Electric
• Average Current Draw 10.0 68
• Average Flow Rating 24.0 GPH

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Delphi When it comes to building fuel modules, Delphi applies its OE expertise and technological leadership to deliver the highest level of performance and customer satisfaction. Delphi engineers each fuel module with the same stringent standards we apply to the parts we make for top vehicle manufacturers like Volkswagen and PSA.
