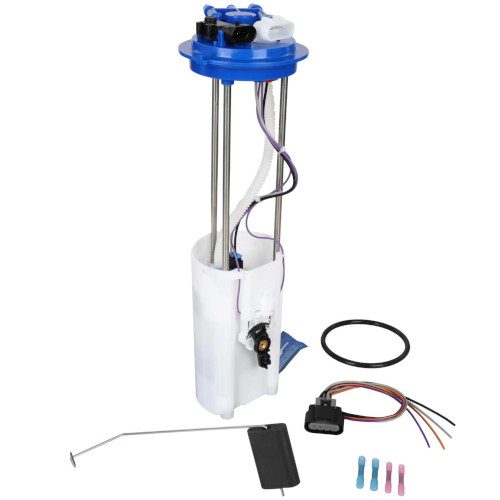

Delphi FG0086 Fuel Pump Module Assembly (Genuine)

Description

Delphi FG0086 Fuel Pump Module Assembly (Genuine)

Cross Reference #:

• DELFG0086
• General Motors 19177226
• General Motors 25314321
• General Motors 25314323
• 9535043
• ACDelco MU146
• ACDelco MU147
• ACDelco MU1745
• Magneti Marelli 1AMFP00041
• EVO Driveline AFS0523S
• EVO Driveline RE0523S
• Carter P74757M
• P74898M
• Carter P75055M
• Airtex E3947M
• E3962M
• Spectra Premium SP461M
• EFP846M
• E3947M
• P461M
• Bosch 67381
• DENSO Auto Parts 953-0009
• DENSO Auto Parts 953-5043
• Spectra Premium SP3957M
• Carquest M319676
• AutoZone EFG0086
• General Motors 19331272
• General Motors 19369943
• Dorman 2630318
• Precision Fuel A27001
• Precision Fuel A30027
• Precision Fuel A30216
• MasterPro Fuel Pumps MPA27001
• TruGrade D5341005
• AUTOBEST HP2958A
• AUTOBEST F2958A
• FACET FUEL PUMPS FEP3947M
• DENSO 953-0009

Applications:

• GMC C3500HD (1998-1999)
• Chevrolet C3500HD (1998-1999)
• GMC K3500 (1998-2000)
• GMC K2500 (1998-2000)
• GMC K1500 (1997-1999)
• GMC C3500 (1998-2000)
• GMC C2500 (1998-2000)
• GMC C1500 (1997-1999)
• Chevrolet K3500 (1998-2000)
• Chevrolet K2500 (1998-2000)
• Chevrolet K1500 (1997-1999)
• Chevrolet C3500 (1998-2000)
• Chevrolet C2500 (1998-2000)
• Chevrolet C1500 (1997-1999)

Specifications:

• Item Grade Standard Replacement
• System Pressure 62 psi
• Fuel Level Sender Assembly Included Yes
• Vapor Pressure Sensor Yes
• Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
• Outlet Outside Diameter 0.375 IN
• Voltage 13.0 2H
• Fuel Type Gas
• Regulator Included No
• Maximum Pressure 109.0 PS
• Terminal Type Pin
• Gasket Or Seal Included Yes
• Terminal Quantity 4
• Lock Ring Included No
• Terminal Gender Male
• Strainer Included Yes
• Inlet Type Strainer
• Outlet Type Quick Connect
• Outlet Quantity 3
• In Tank or External In Tank
• Resistance Ohms Empty 40.0 82
• Resistance Ohms Full 250.0 82
• Internal Or External Strainer Internal
• Pump Type Electric
• Average Current Draw 10.0 68
• Average Flow Rating 32.0 GPH

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.
