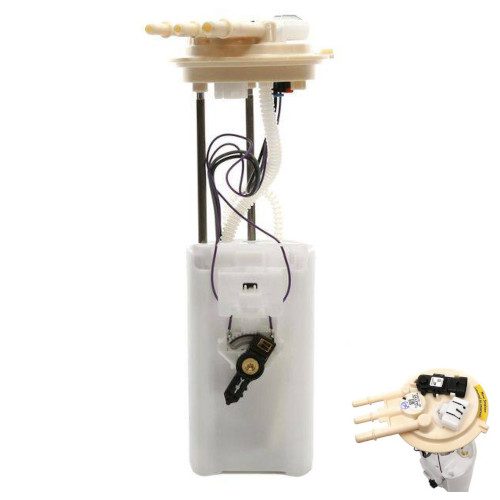

Delphi FG0072 Fuel Pump Module Assembly (Genuine)

Description

Delphi FG0072 Fuel Pump Module Assembly (Genuine)

Cross Reference #:

• DELFG0072
• General Motors 19177256
• General Motors 25178732
• 9535000
• Bosch 67408
• ACDelco MU1063
• ACDelco MU113
• ACDelco MU1755
• Magneti Marelli 1AMFP00048
• EVO Driveline AFS0438S
• EVO Driveline RE0438S
• Carter P74761M
• Airtex E3954M
• Spectra Premium SP414M
• Kem EFP813M
• Master Parts Division E3954M
• BorgWarner P414M
• Niehoff P414M
• DENSO Auto Parts 953-0024
• DENSO Auto Parts 953-5000
• Carquest M283761
• AutoZone DFG0072
• General Motors 19331273
• General Motors 19369950
• Precision Fuel A30051
• MasterPro Fuel Pumps MPA30026
• TruGrade D5341672

Applications:

• GMC Jimmy (1997-2002)
• Chevrolet Blazer (1997-2002)

Specifications:

• System Pressure 58 psi
• Vapor Pressure Sensor Yes
• Fuel Level Sender Assembly Included Yes
• Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
• Item Grade Standard Replacement
• Outlet Outside Diameter 0.375 IN
• Voltage 13.0 2H
• Fuel Type Gas
• Regulator Included No
• Maximum Pressure 109.0 PS
• Terminal Type Blade
• Gasket Or Seal Included Yes
• Terminal Quantity 4
• Lock Ring Included No
• Terminal Gender Male
• Strainer Included Yes
• Inlet Type Strainer
• Outlet Type Quick Connect
• Outlet Quantity 3
• In Tank or External In Tank
• Resistance Ohms Empty 40.0 82
• Resistance Ohms Full 250.0 82
• Internal Or External Strainer Internal
• Pump Type Electric
• Average Current Draw 7.0 68
• Average Flow Rating 29.0 GPH

*Please note that the items you are about to purchase might appear dusty due to their extended shelf life; however, rest assured they are entirely brand new and have never been used.

Delphi When it comes to building fuel modules, Delphi applies its OE expertise and technological leadership to deliver the highest level of performance and customer satisfaction. Delphi engineers each fuel module with the same stringent standards we apply to the parts we make for top vehicle manufacturers like Volkswagen and PSA.
